ThinCast™ Rainscreen Panels
ThinCast™ Rainscreen Panels Overview
What is a rainscreen?
A methodology for enclosing a structure with an external protective material over a building’s waterproof membrane layer. Three key components to a rainscreen are critical to the success of the product:
- Air space between the exterior cladding and the moisture barrier
- A clear drainage plane behind the exterior cladding
- Drying of the assembly through convection
The ultimate goal is to deflect most of the elements before reaching behind the panels and having a successful draining system to take care of the rest.
How can ThinCast™ Help?

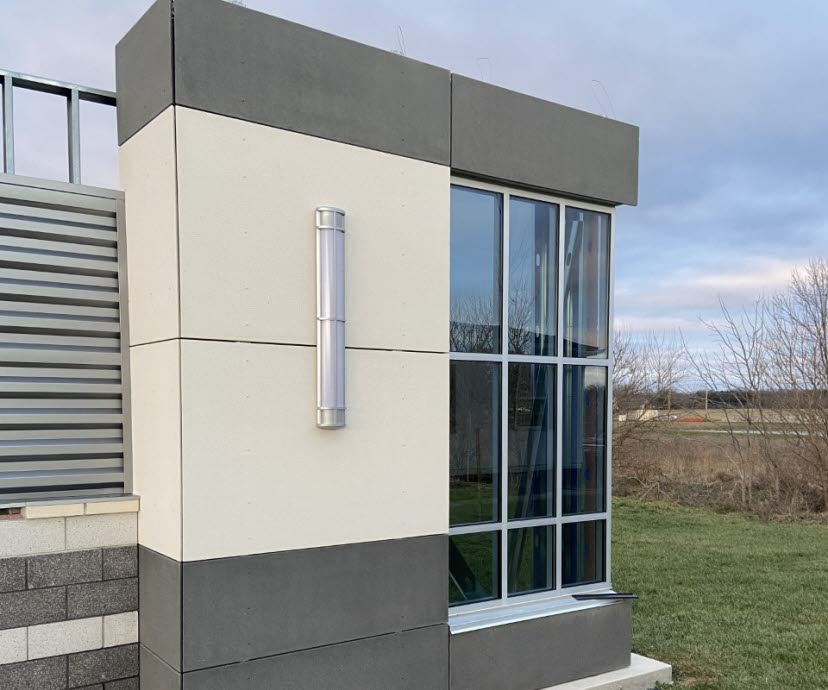

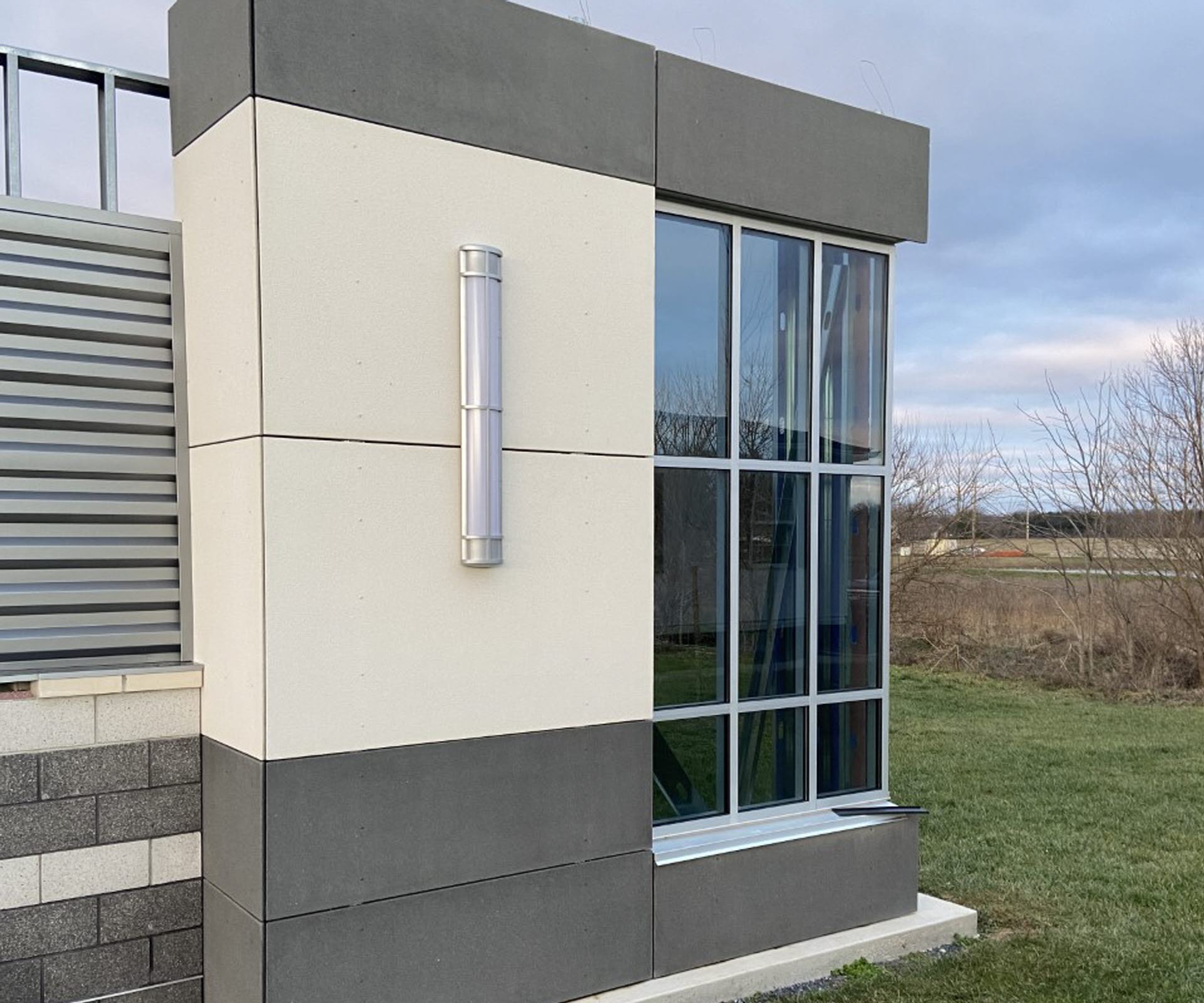

While being able to act functionally as any other rainscreen system out there, ThinCast™ also adds the natural beauty of concrete to the mix. Showcasing natural aggregates with a variety of colors and sizes, a modern sophisticated look can be added to any building. High Concrete Group is the only ThinCast™ rainscreen panel manufacturer since it is our own innovative design.
Meet A Representative
Alexandra "Ace" Clayton
Business Development
Mobile: 717.538.8078
ThinCast™ Literature
Key Benefits
Durable
- Long service life
- Functional resilience
- Passive fire resistance
Flexible and Adaptable

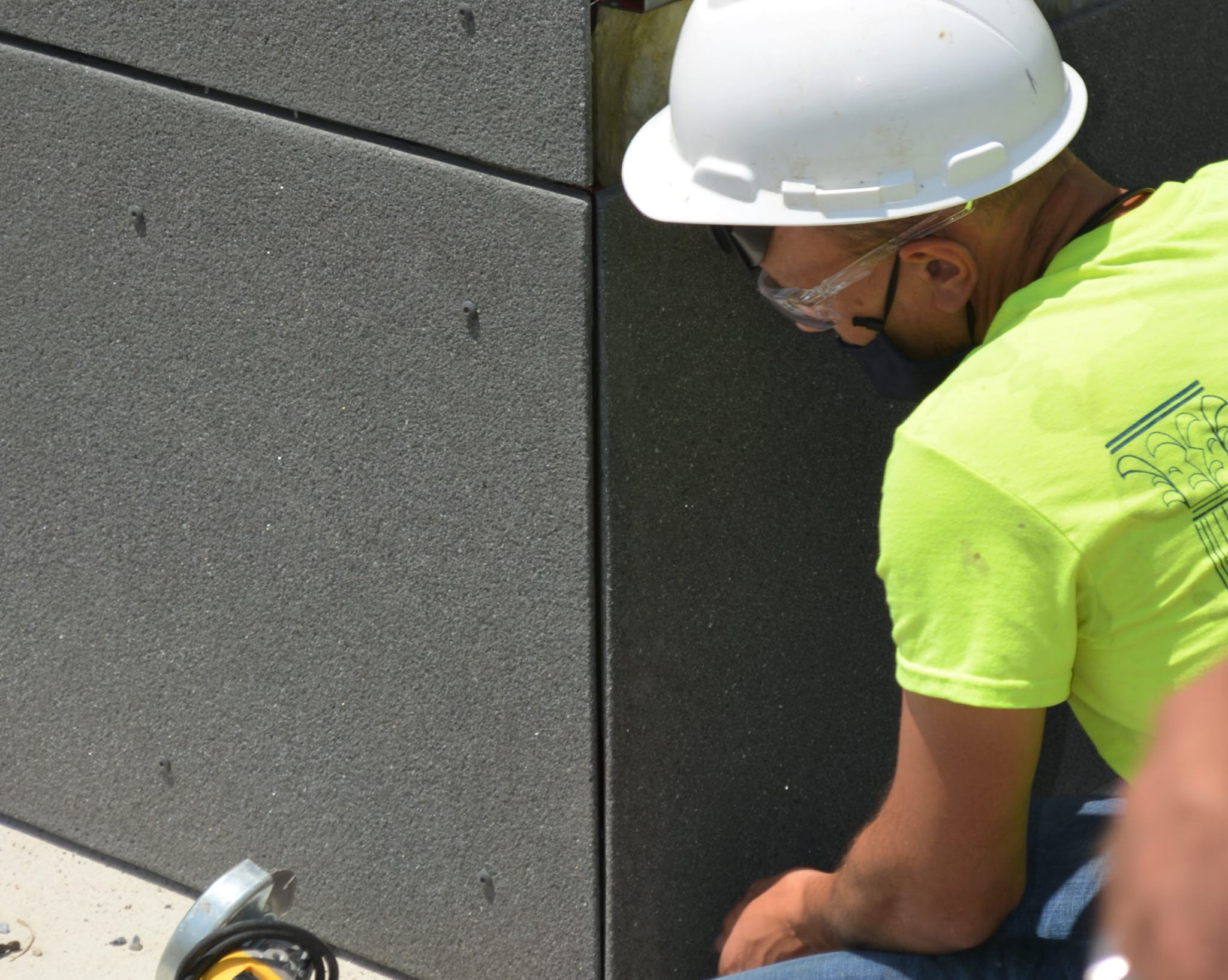

- Modular configuration allows user to cut and penetrate panels with ease

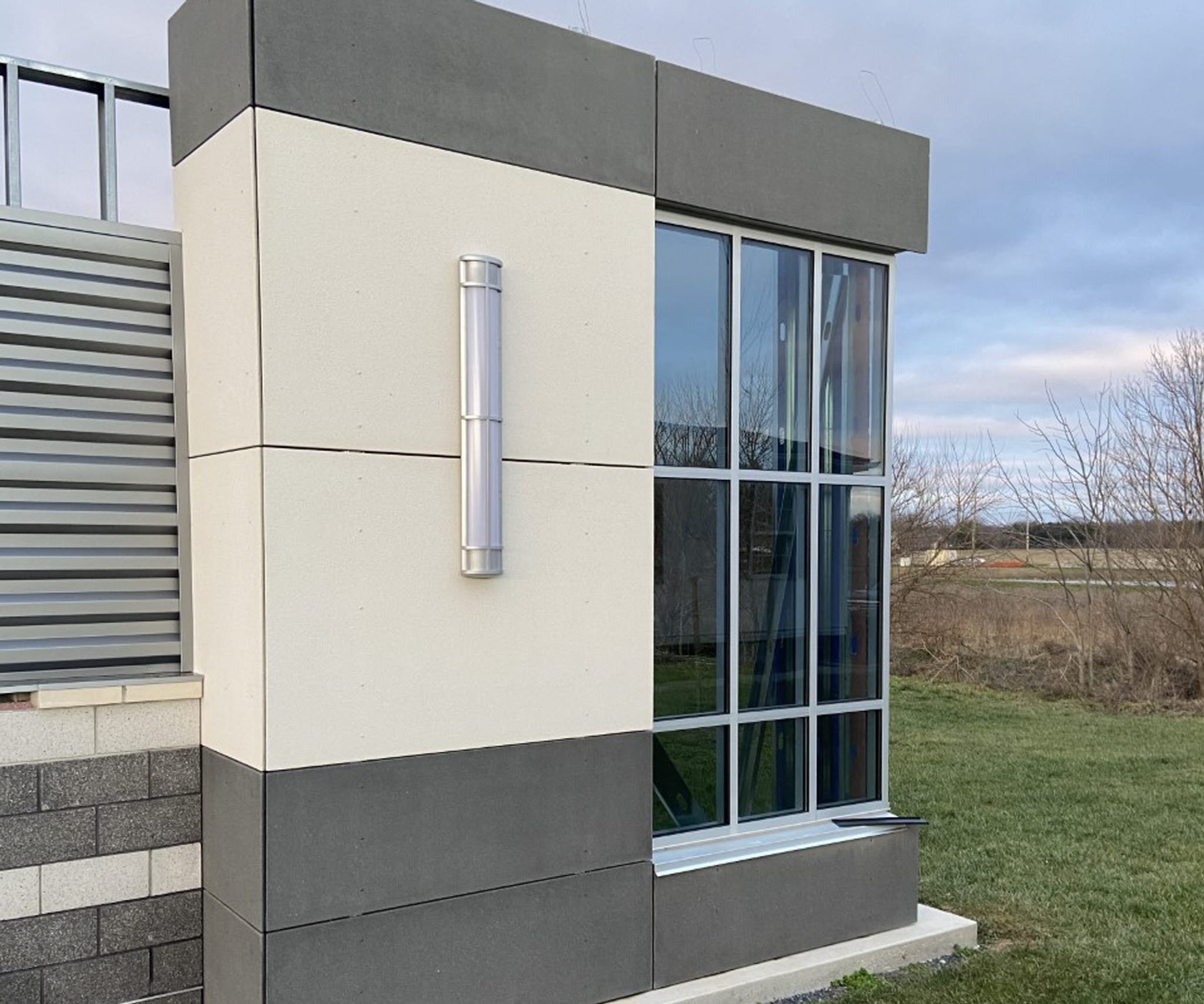

- Horizontal and vertical orientation options allow the creation of dramatic facades
- Short lead time to facilitate short constructions schedules
Lightweight
- Lower-cost superstructure
- Smaller and less expensive cranes or lifts for installation
- Easy to ship long distances with low cost
Resilient
- High-performance concrete provides strength in excess of 7,500 psi for enhanced durability

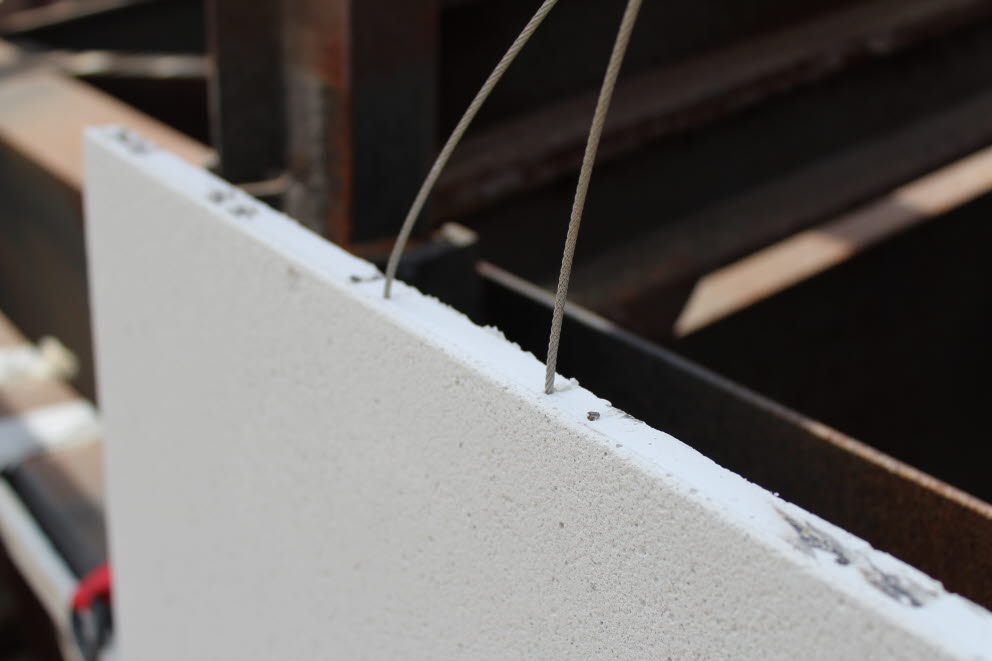

- Stainless steel prestressing provides corrosion-resistant reinforcing to further increase strength
Standard Panel Sizes
ThinCast™ is offered in 6 different standard sizes
Horizontal or vertical orientation provides a diverse range of options for a design layout of our precast concrete rainscreen.
- 48"x18"
- 48"x24"
- 48"x48"
- 72"x48"
- 72"x24"
- 72"x18"
Panel Characteristics
- Panel Thickness: 3/4 inch (19mm)
- Panel Weight: 10 lbs/ft²

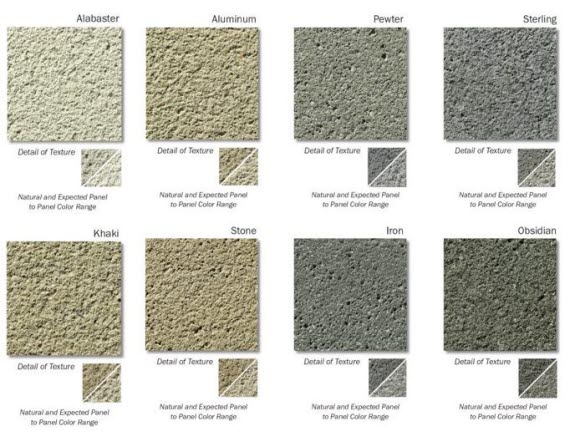

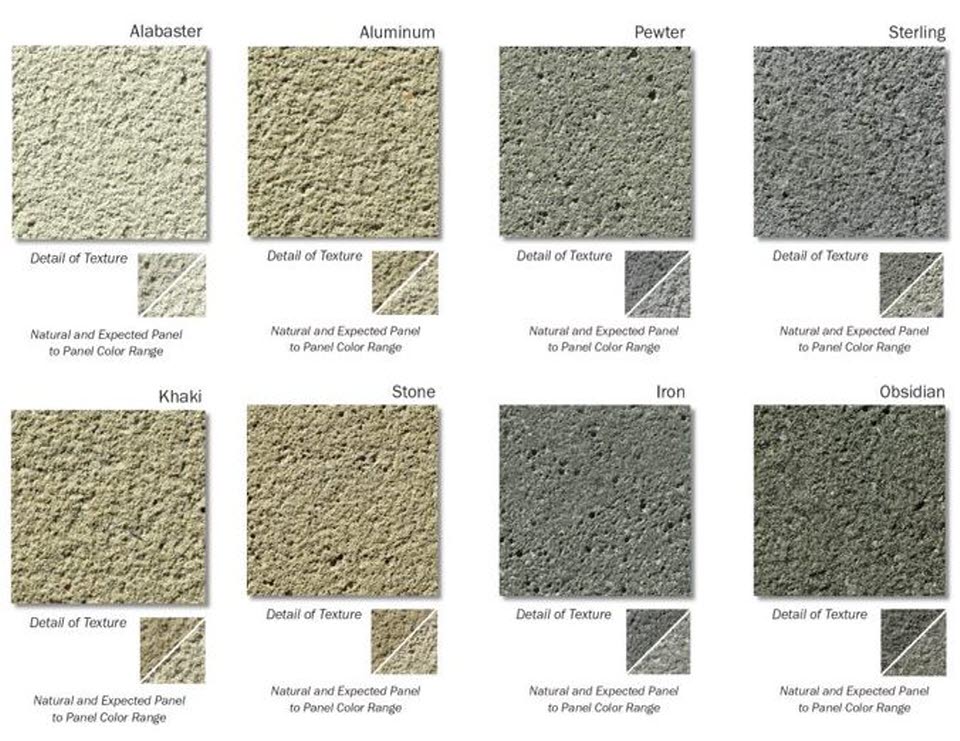

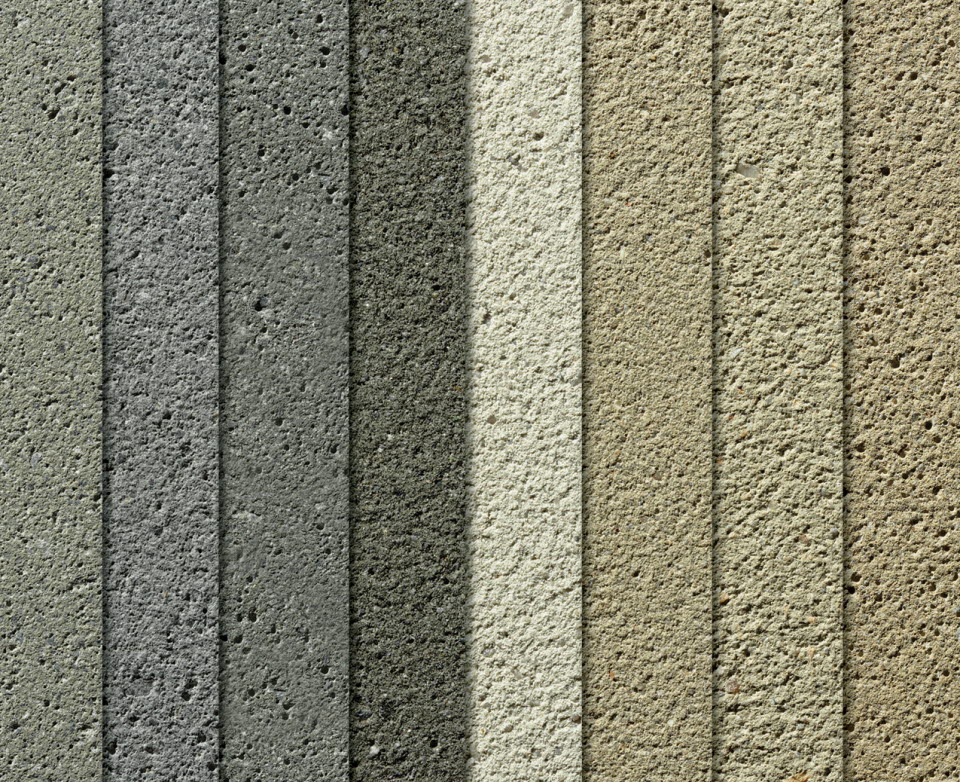

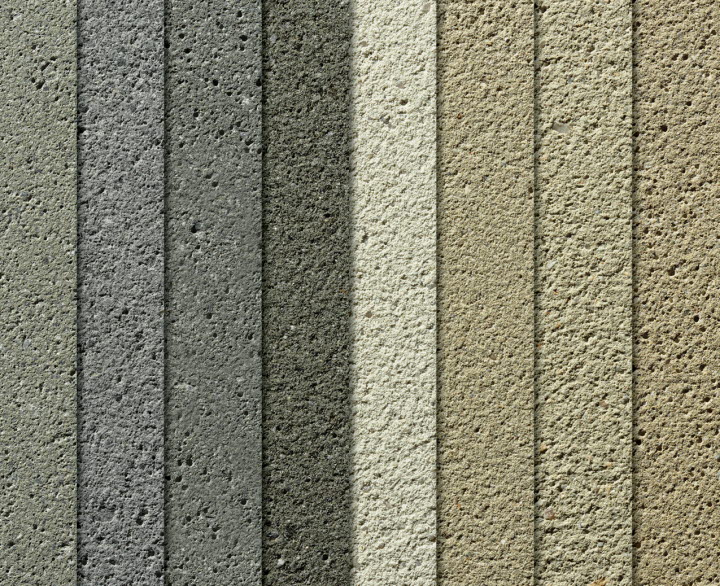

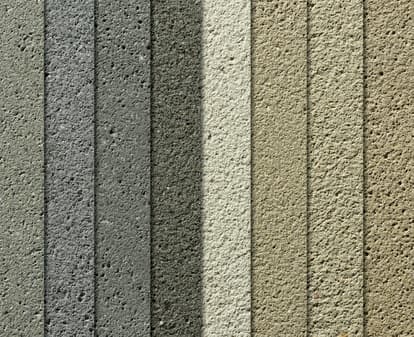

Standard Colors
Naturally Beautiful

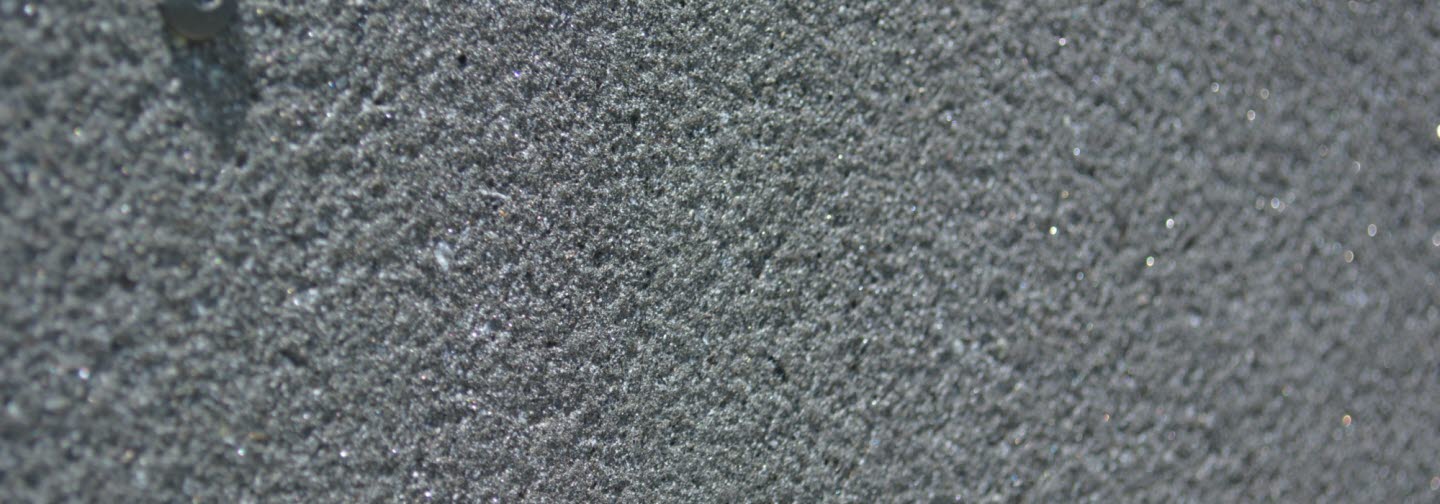

- Sourced from local quarries, our aggregates provide the ability to create unique and attractive color variation both within panels and between panels

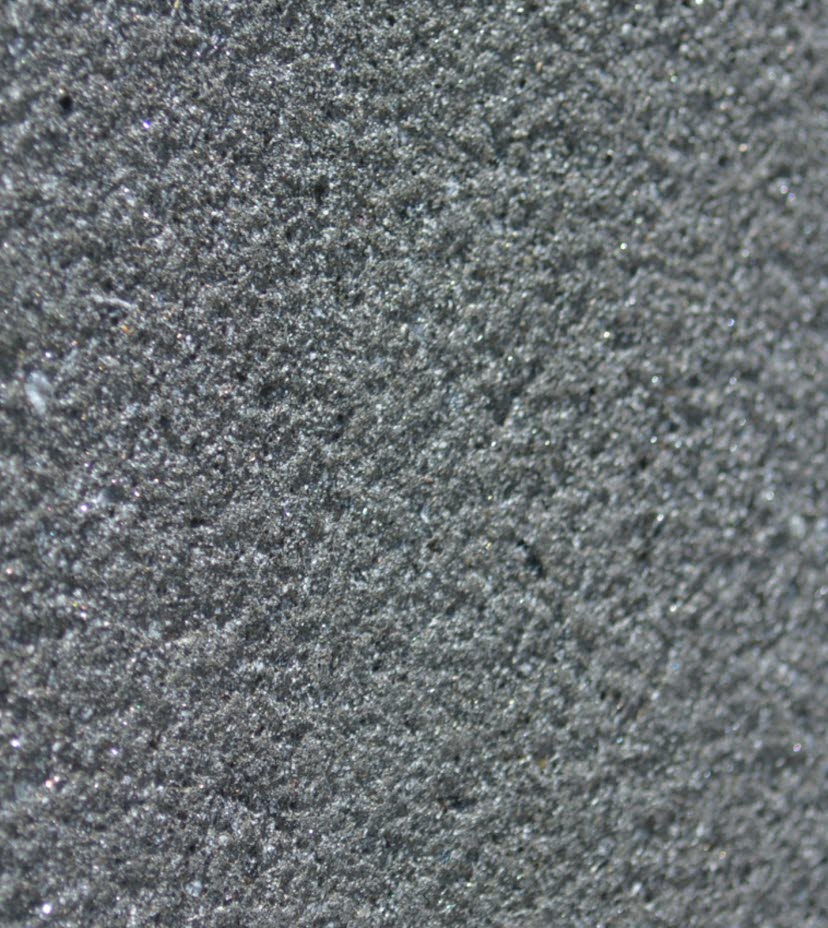

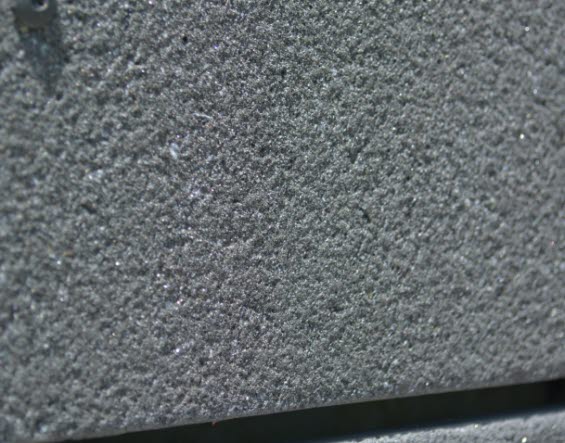

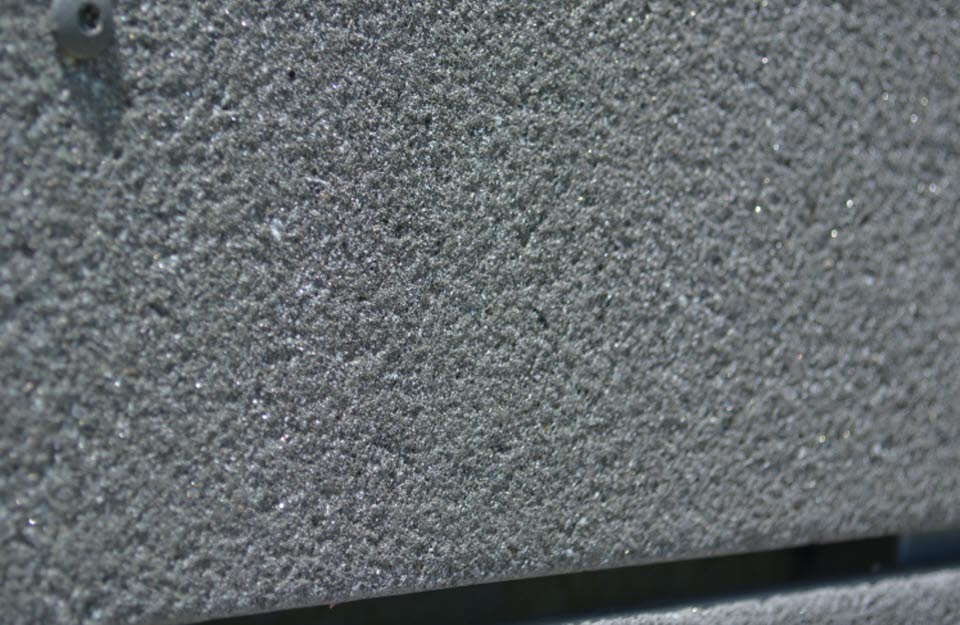

- The variation of color and texture of the natural aggregates gives concrete versatility, resilience, and durability
Resources
ThinCast Rainscreen Sell Sheet
Learn more about ThinCast through our product sell sheet.
ThinCast Rainscreen Brochure
Learn more through our brochure about the details and specifications of ThinCast Rainscreen Panels.
ThinCast Rainscreen Specifications
Learn how to specify this product in your next project!
Colors & Finishes
Many colors and texture options are possible by varying aggregate type, color, size, finishing process, and depth of exposure.
BIM
Augmented reality can help bring your project to life before construction even starts. See what your project looks like in 3D with our top of the line team at High Concrete.
