Precast Concrete Design Aesthetic
Precast Design Solutions That Work For You
Precast Offers design freedom, innovation, and Diverse solutions
When it’s first mixed, concrete is in a plastic state, so it can take the shape of the form it’s poured into, the mold that’s designed to your specifications. Curves, dentil details, colonnades, cornices, projections, colors, forms, finishes are possible and defined by your design, as well as:
- Virtually unlimited colors and textures can be achieved through the use of various aggregate, cement, pigment, and finishing techniques
- Textures including formliner shapes, artwork, and lettering provide distinctive accent treatments

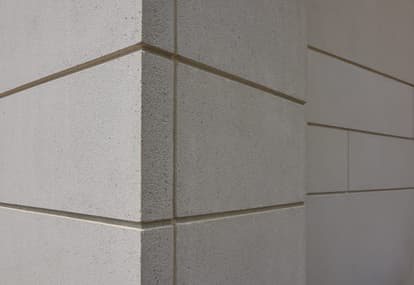

- Finishes such as sandblast and acid etch to retarded exposures allow surfaces to be differentiated and deepened to meet design requirements
- Almost any veneer, including brick, stone, and tile, can be incorporated into a precast facade
- Brighter, more open, and flexible interiors because longer spans and more open plans are made possible by precast deck systems
Meet A Representative
Alexandra "Ace" Clayton
Business Development
Mobile: 717.538.8078

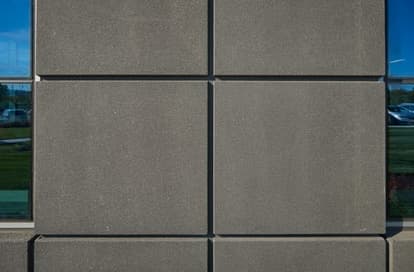

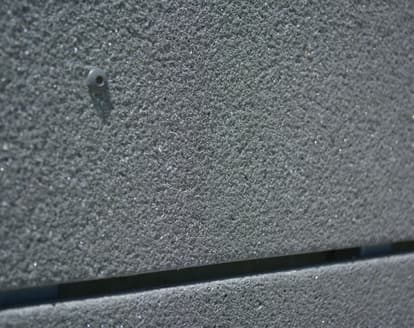

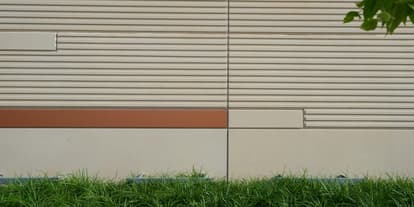

Color & Finish
Easy Way to Add Depth
- Precast color is achieved through a combination of white or gray cement, coloring agents, and fine or coarse aggregates.
- Many color and texture options are possible by varying aggregate type, color, size, finishing process, and depth of exposure.
- Using urethane, plaster, rubber, grained wood, rope or other material as a liner in the casting form helps create finishes, reliefs, textures, shapes and patterns.
- Brick and stone veneers achieve the look of hand-laid masonry or stone cladding with greater efficiency, safety, and water tightness.
Click Learn More below to see Precast Color and Finish Options

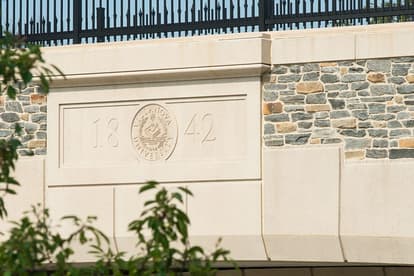

Formliner
Cast in your Design
Make every project a work-of-art with the ability to customize cast patterns for visual impact while reducing the building’s mass. Color and texture and patterns in precast make it a preferred design medium.

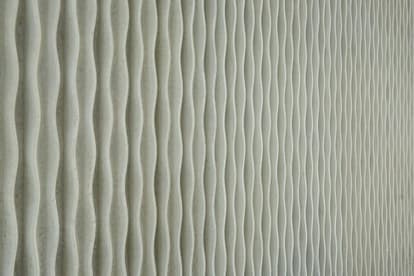

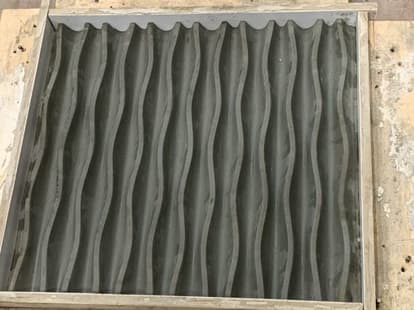

Formliners are made from any of a variety of materials such as urethane, foam, plastic, and even steel to cast textures including ribs, stone, and brick as well as logos, words, or artwork into a panel. Formliners are most economical when designed for re-use, either in whole or in part.
Applied Veneers

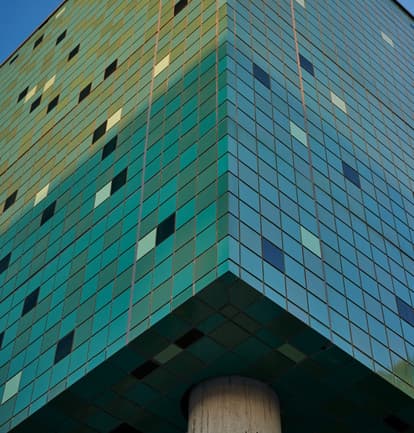

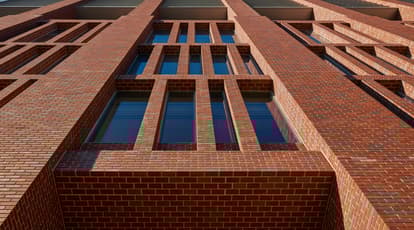

Tile and ThinBrick Veneers
Hard-faced tile-like sections of brick—have specially molded backs that lock into wet concrete. They are cast into concrete backers using formliners to hold them in place while the panel is cast on top of them. Formliners can provide either a crisp, machine-laid or a more irregular, hand-laid appearance. A variety of joint details and an ever-expanding variety of brick sizes, colors, and textures are available. Tile and thinbrick can either cover precast panels completely or be designed to work with exposed concrete areas. Thin brick is highly impervious compared to full- or half-bricks due to its molding process. Because an impervious precast panel backer replaces traditional pervious “mortar” joints, water will not get behind a thin-brick veneered panel and cause bricks to pop off.

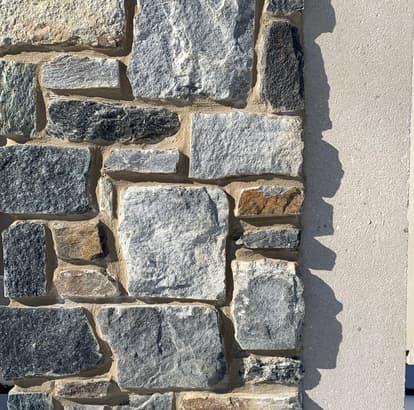

Stone Veneers and Matching Finishes
Granite, limestone, and marble veneers (e.g., 1-1/2"–2" thick) can be drilled, fitted with stainless steel pins, and cast into rigid precast backers to provide large, fully or partially veneered panels. Stone-veneered precast panels can be an efficient way to clad high-rise buildings. For economy, natural stone veneers are often used on lower levels of buildings with matching custom-mixed all-precast panels on the upper levels. To ensure best quality, and to speed installation, mortar between stone can be done in the factory, leaving only the sealing between panels to be completed in the field.
Featured Projects

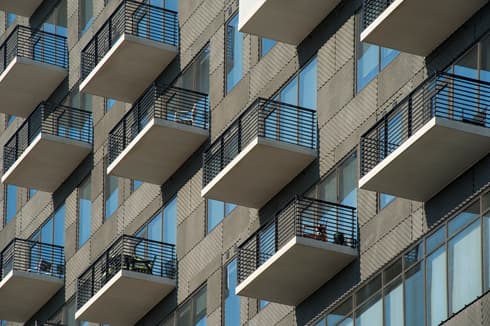

80 on the Commons
The playful yet sophisticated use of a herringbone pattern results in a standout, bold style that NBBJ wanted to capture on this civic asset in the city’s central open space.

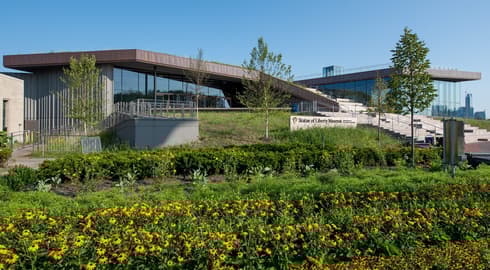

Statue of Liberty Museum and Screening Facility
At this iconic location, now stands resilient structures that are dynamic in expression and were inspired by the irregularity of the water’s

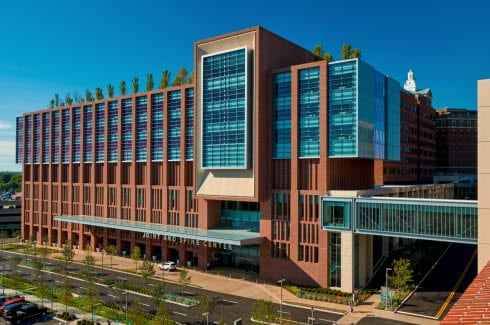

Christ Hospital
In 2012, the Christ Hospital Network in Cincinnati, Ohio, decided to add an orthopedic center of excellence to its already nationally renowned healthcare facility. The owners worked with an architect to design the seven-...

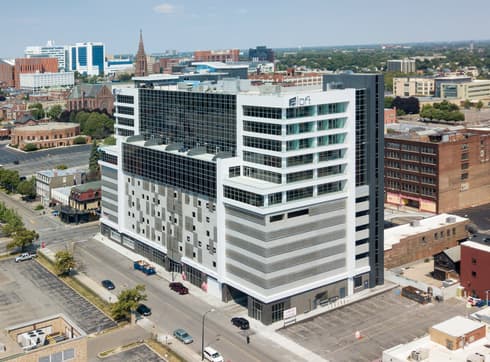

500 Pearl Street Parking Garage
Perched up above a seemly 6-story precast podium parking garage stands a hotel and apartments that rely on the durability of precast to provide key functionality to the structure. While the garage is an open design...
ELEVATE YOUR PRECAST DESIGN.
Have a question about our precast design options? That's what we are here for. Reach out to our team of precast design engineers with any questions or details about your project and we will get back to you.
